List files

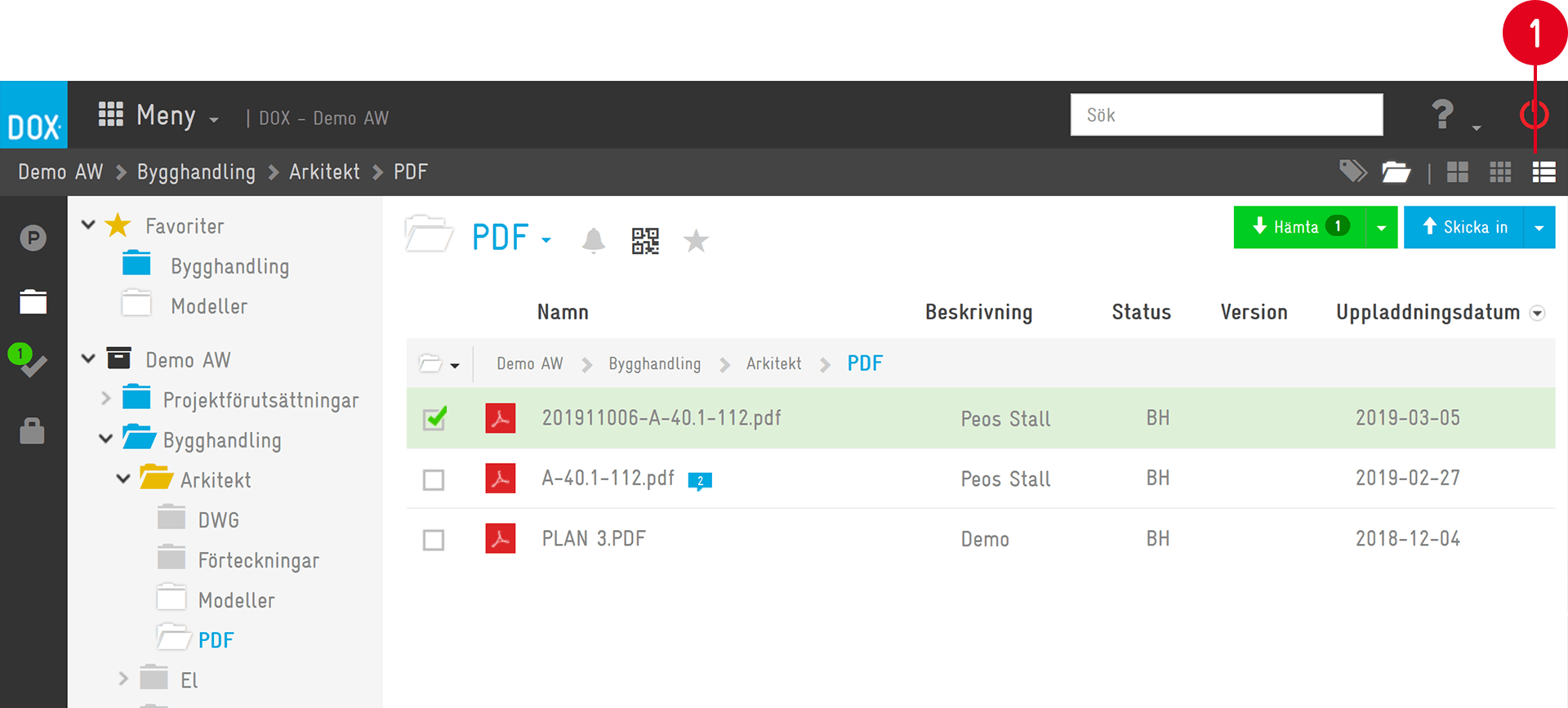

List view

  1. Click on Listview.

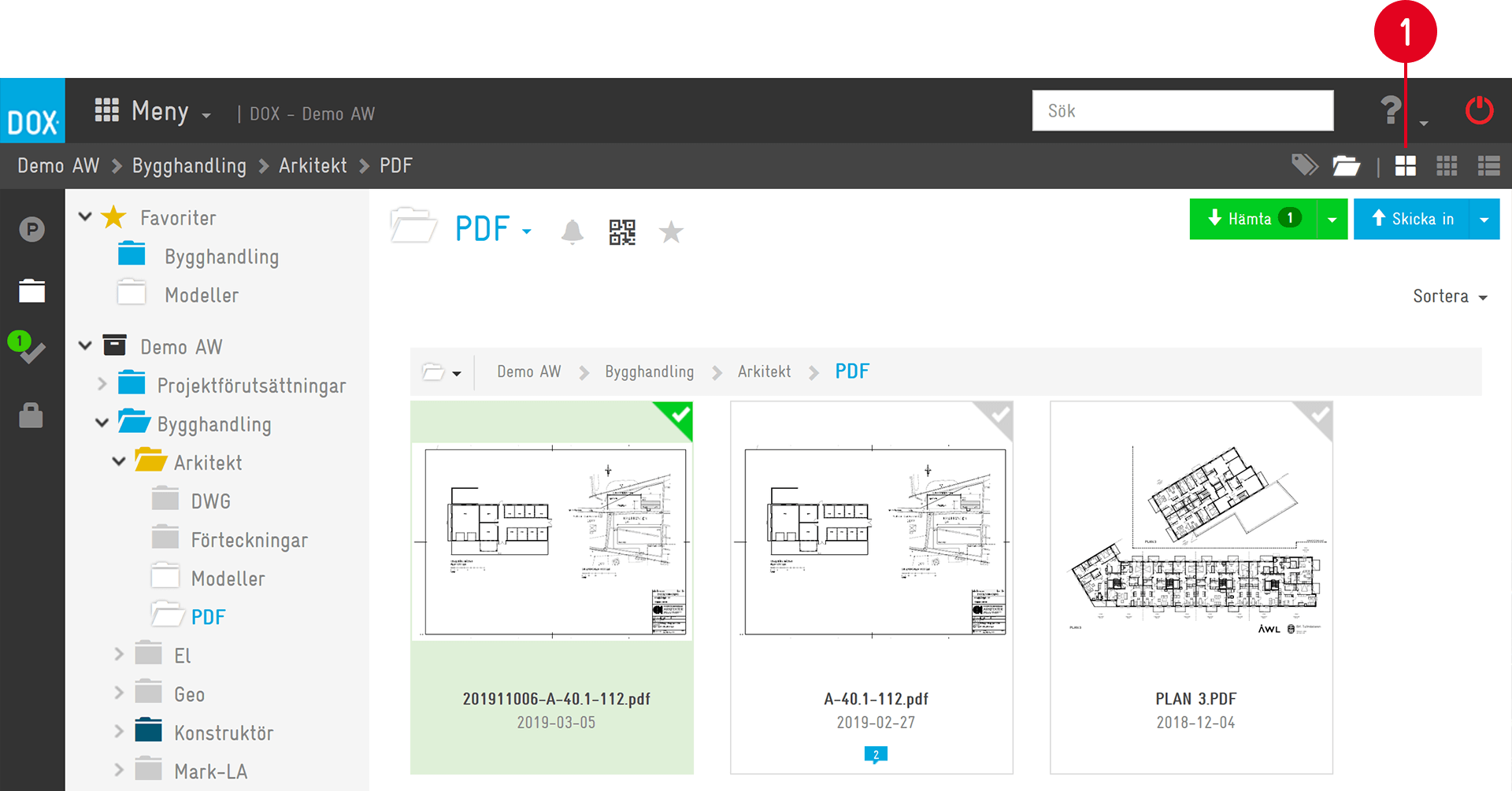

Thumbnail view

  1. Click on Tumbnail view.

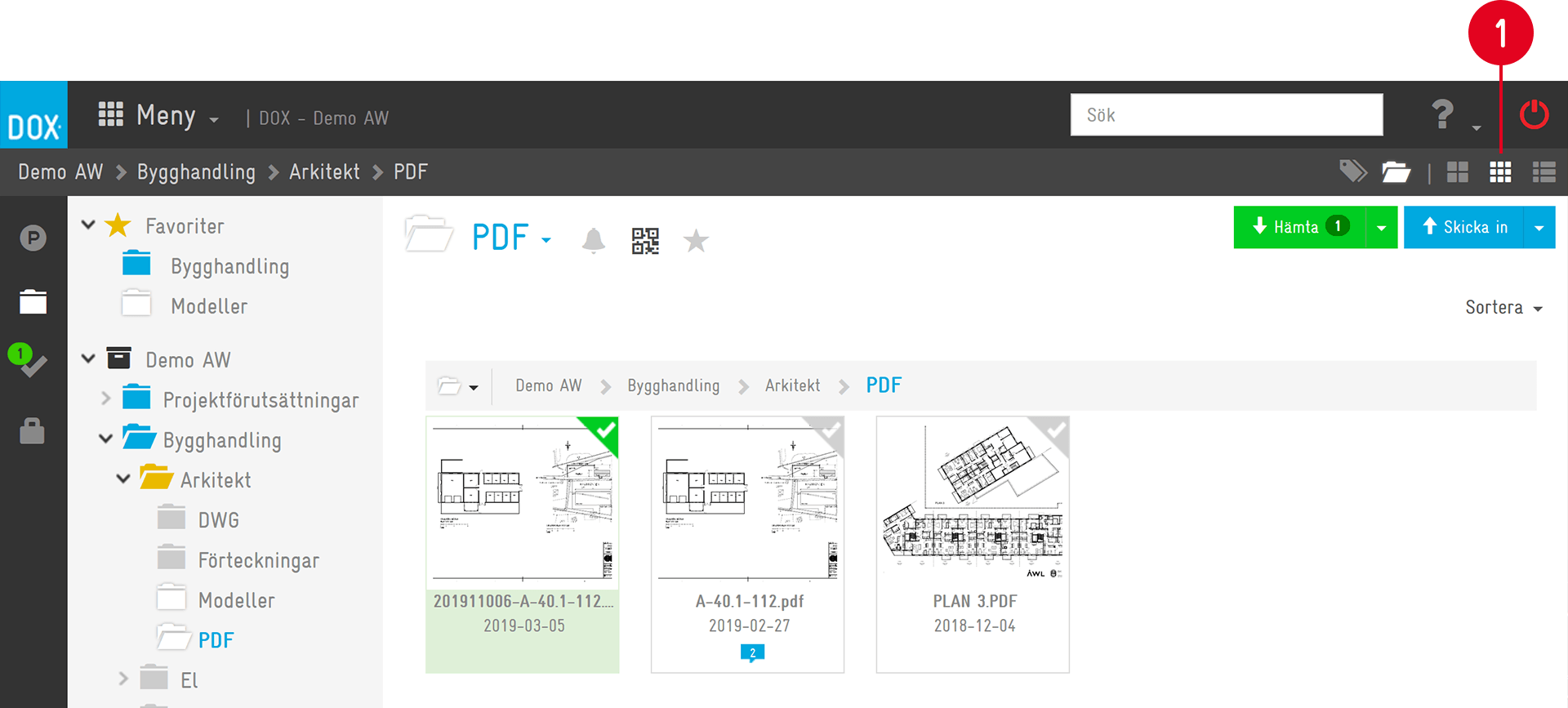

Large thumbnail view

  1. Click on Large tumbnailview.

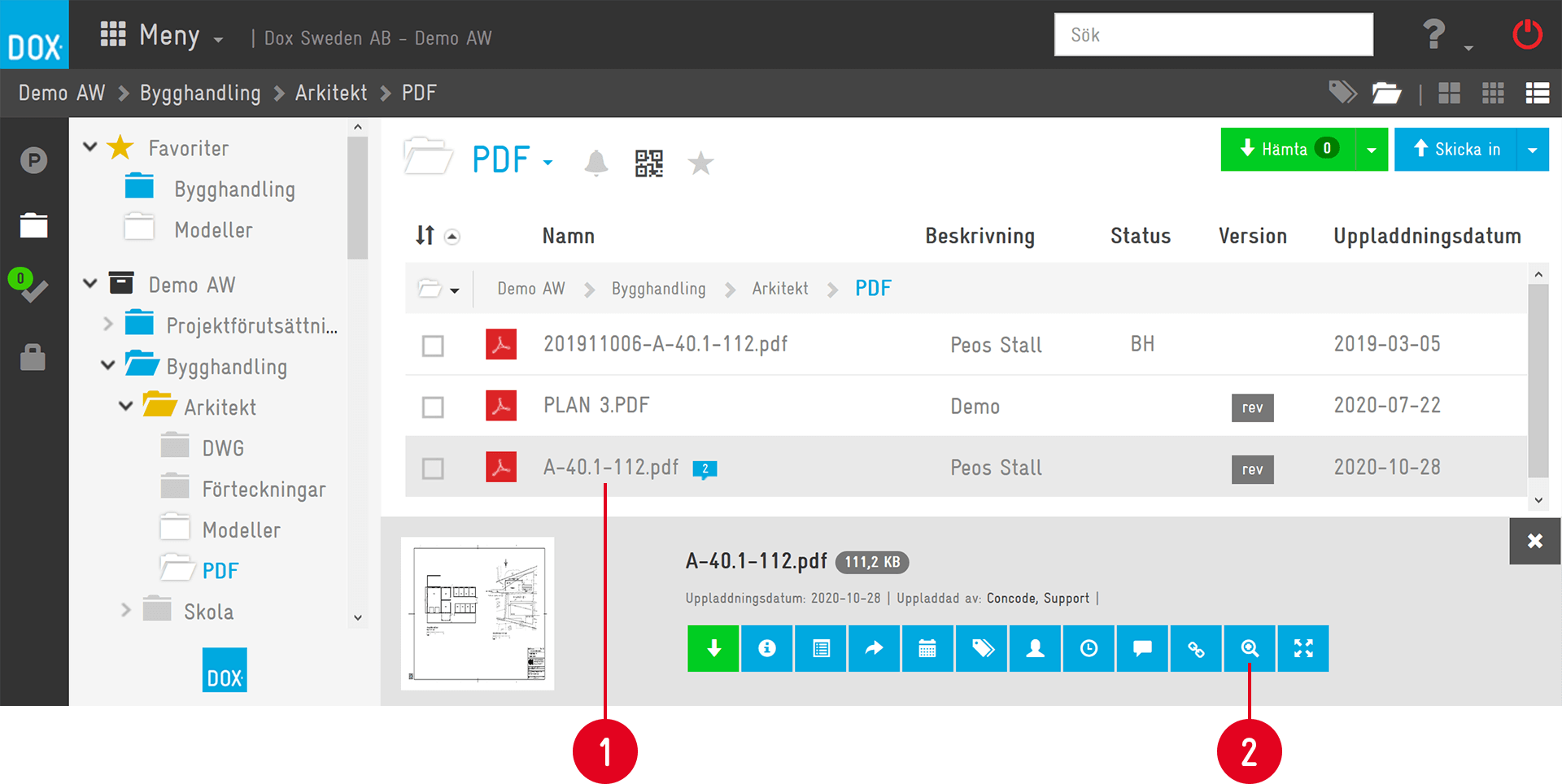

Slideshow

Images and pdf-files can be opened in a slideshow to view them in a larger version.

  1. Click on an image or a pdf-file.

  2. Click on Slideshow.

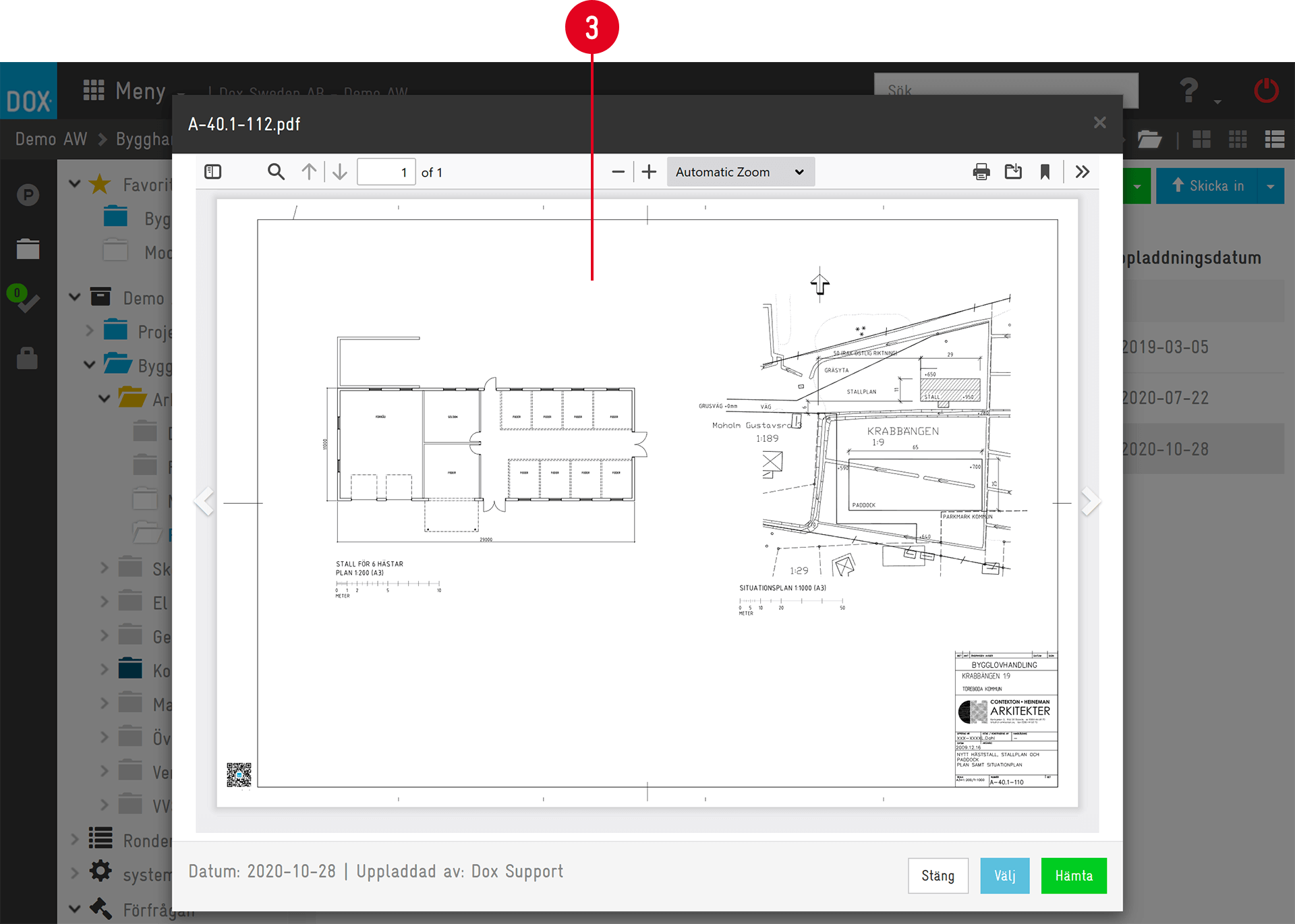

  1. The file will open in a larger version. Click on the arrows to browse.

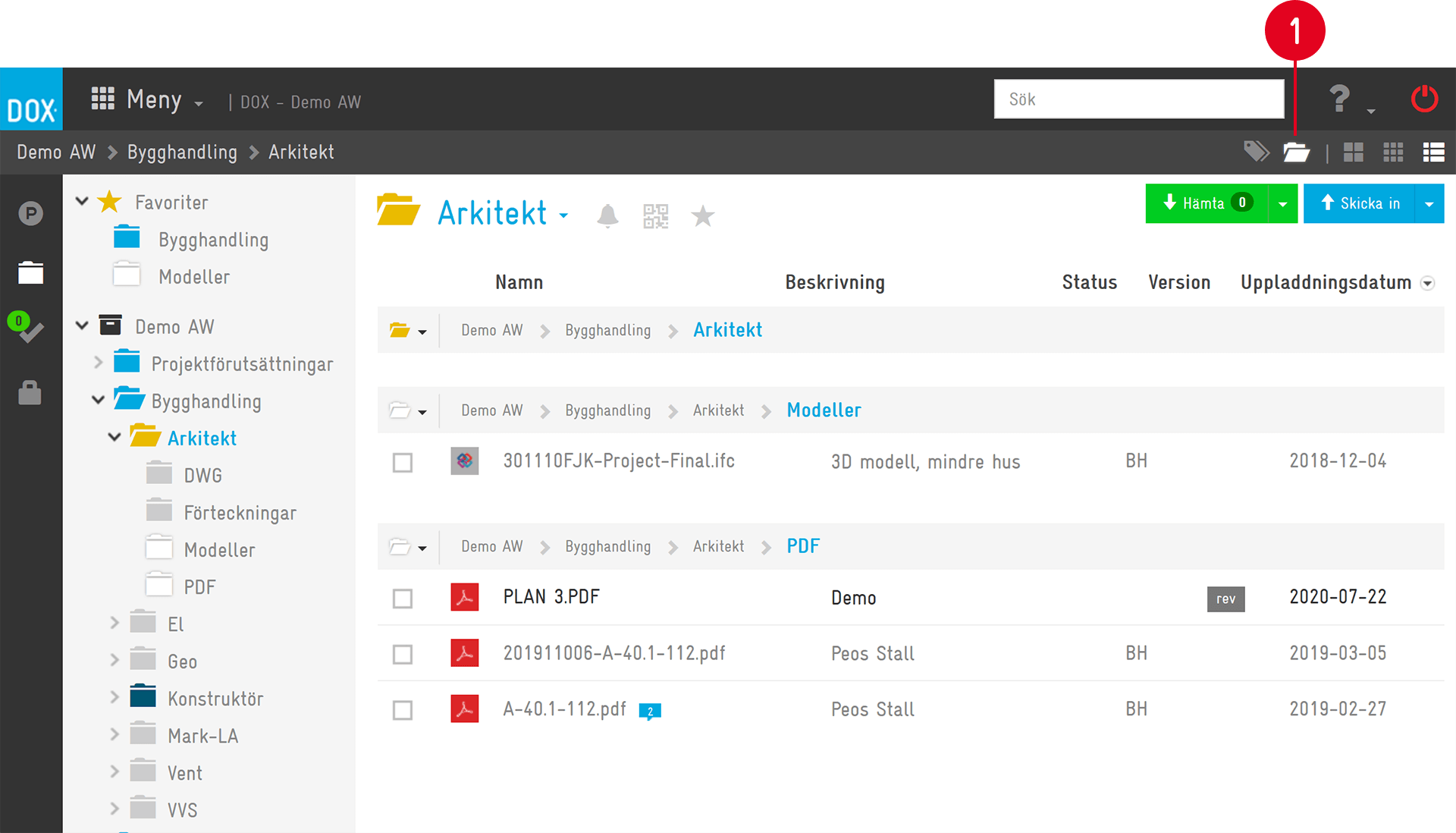

View files in the current folder or also in subfolders

  1. Click on the folder.

    – Open folder, shows files in current folder and subfolders.

    – Closed folder, Shows only files in the current folder.




The example above shows files in the current folder and its subfolders. The current folder “Architect” is empty but there are files in its subfolders “Models” and “PDF”. If we choose to show only files in the current folder, it would show that the folder is empty.

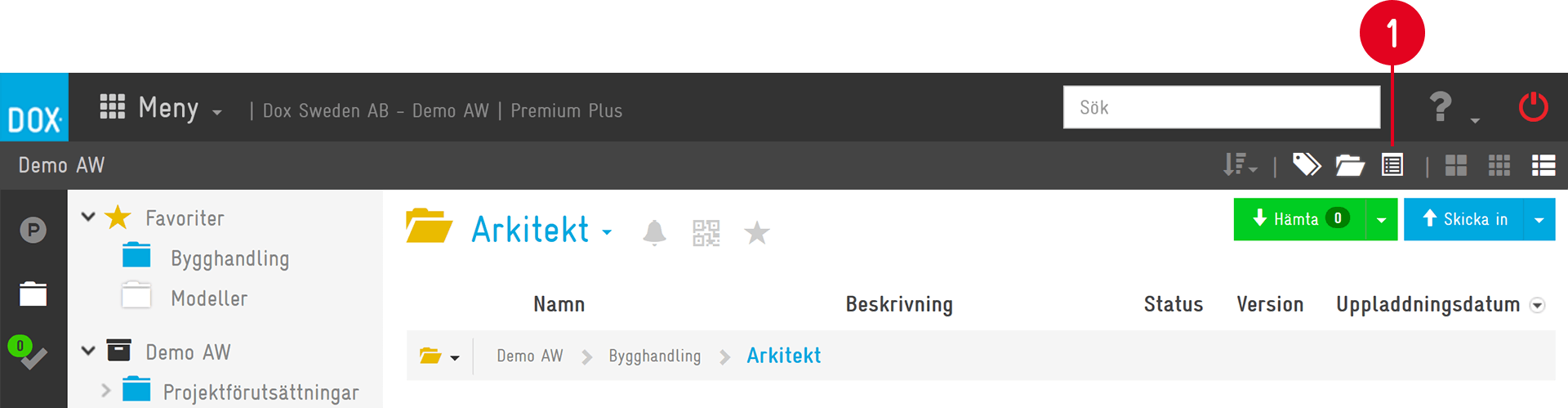

Show or hide paths in file list

  1. Click on the icon.

    – White icon, shows paths in the file list

    – Gray icon, not showing paths in the file list



In the example above, the gray row with the path Demo AW / Construction Document / Architect is shown.
